Abnormal Shape Touch Screen, custom touchscreen
10.0 USD ($)/Piece
Product Details:
X
Abnormal Shape Touch Screen, custom touchscreen Price And Quantity
- 100 Piece
- 10.0 USD ($)/Piece
Abnormal Shape Touch Screen, custom touchscreen Trade Information
- SHENZHEN
- Paypal Letter of Credit at Sight (Sight L/C) Telegraphic Transfer (T/T)
- 100000 Piece Per Month
- 25 Days
- Yes
- Contact us for information regarding our sample policy
- Vacuum-formed tray packaging
- Asia Australia Central America North America South America Eastern Europe Western Europe Middle East
- All India
- ROHS CE
Product Description

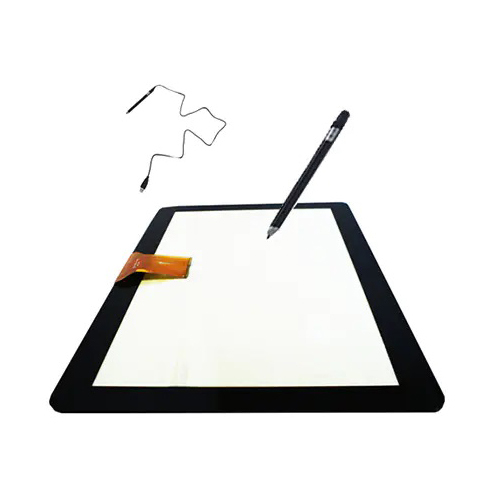

1. Custom size capacitive touch screen
Size from 1.54 inch to 65 inch capacitive touch screen
Size from 1.54 inch to 65 inch capacitive touch screen
2. Capacitive touch screen structure GFF, GF, GG(SITO), GG(DITO), OGS
3. Cover lens materials:
Soda-lime glass or High-alumina glass
4. Cover lens Thickness:
0.55mm(suggest size < 6 inch
0.7mmsuggest size <10.1 inch
1.0mm(custom thickness
1.1/1.8mm( standard thickness)
2.0mmcustom thickness
3.0mm (Standard thickness)
4.0/5.0mmcustom thickness)
5. Cover Glass Surface Treatment:
a. AF: Anti-fingerprint
Commonly used processes include spraying and electroplating. Electroplating offers better friction resistance but is more expensive.
b. AR: Anti-reflection
Using an electroplating process, it appears purple, red, or blue, giving an overall high-end visual effect.

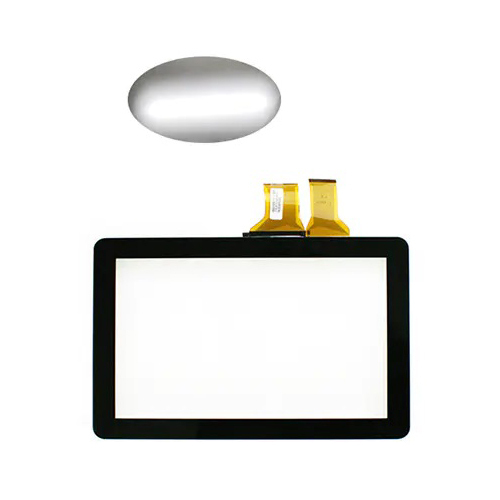

c. AG: Anti-glare
Commonly used processes include etching and spraying. The etching process provides better friction resistance.
6. Glass sensor
6.1 Thickness
0.4/0.55/0.7/1.1/1.8mm
6.2 Sheet Resistance
4060 / 6090 / 80120 / 200300 : Anti-Ghosting Treatment required.
300500 / 400600 :Anti-Ghosting Treatment optional (suitable for small to medium-sized displays only).
6.3 Strengthening Treatment
Standard: No additional treatment.
Chemical Strengthening:
Recommended for: Sensors with a thickness of 0.4 mm or Structures where the sensor directly contacts the housing.
7. Film Sensor
7.1 Thickness
0.05mm Easily prone to pressure damage and bending damage, only suitable for small sizes
0.075mm
0.1mm
0.125mm
7.2 Sheet Resistance
10050 : Poor etching marks, suitable for medium to large screens.
15050 : Industrially mature material, currently widely used.
8. OCA
8.1 Liquid OCA
Lower cost, but edge wet glue cannot be completely removed, and adhesive thickness uniformity is poor. It has been largely phased out.
8.2 Solid OCA
Higher cost, with uniform adhesive thickness, but not easy to rework during the manufacturing process. Used in some customized products long before for the unity.
8.3 UV-curable Solid OCA (SCA)
Higher cost, with uniform adhesive thickness and easy rework during the manufacturing process. Currently the mainstream material.
9. How to custom a touch screen?
Tell us:
A. Touch dimension, thickness, FPC postion etc
B. IC solution, interface

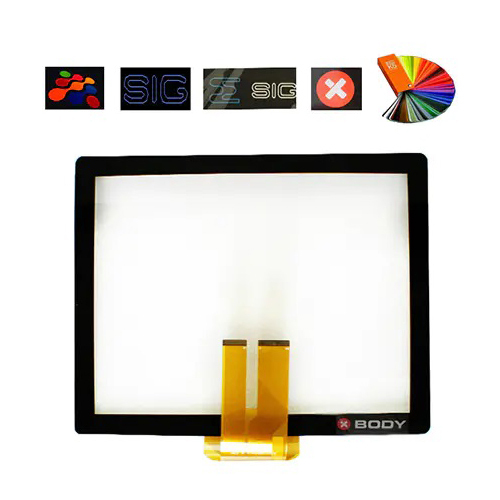

C. Cover lens thickness,color, printings, logo, special coating(AF,AG,AR)
D. Back adhesive tape thickness and brand
E. Touch points, origin(0,0) positon
F. Hardware platform, operation system etc.
G. Motherboard IC with pull-up resistors or not
10. Application of touch screen
A. Consumer Electronics(Smartphones & Tablets, Smartwatches & Wearables)
B. Retail & Hospitality(POS Systems, Self-Service Kiosks)
C. Automotive(Car Infotainment Systems, Dashboard Navigation)
D. Industrial & Manufacturing(Factory Automation, Medical Devices
E. Education & Public Sector(Study tablets, E-readers, Iteractive kiosks, Advertising machine)
F. Gaming & Entertainment(Arcade Machines, Casino & Lottery Terminals, Toys)
G. Home Automation & Smart Devices(Smart Home Control Panels, Voice-Activated Touch Devices)
