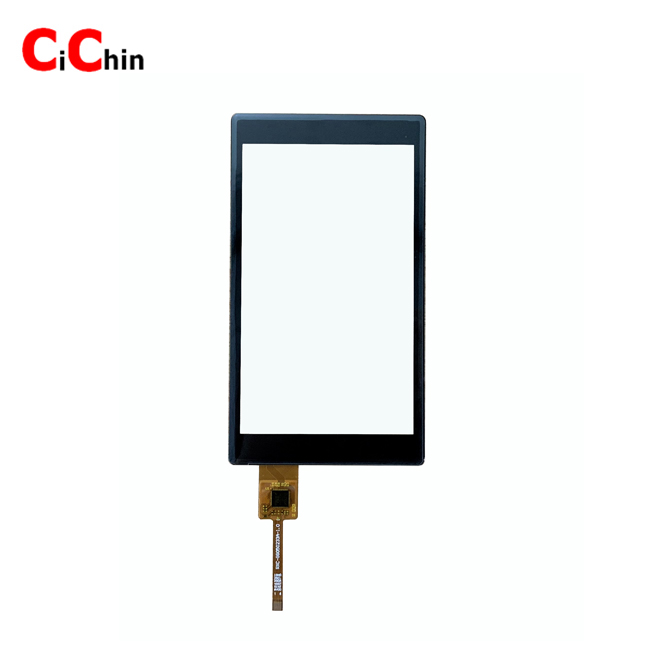

5 inch capacitive touch screen, android touch panel with IIC interface, factory pricing touch panel

Price 1.0 USD ($)/ Piece

Get a Price/Quote

MOQ : 10 Pieces

5 inch capacitive touch screen, android touch panel with IIC interface, factory pricing touch panel Specification

Design
Modern

Finish
Smooth

Size
Different Available

Installation Guideline
As Suggested

Surface Treatment
Coated

Service Period
6 To 12 Months

Application
Commercial

Color
Different Available

5 inch capacitive touch screen, android touch panel with IIC interface, factory pricing touch panel Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
SHENZHEN

Payment Terms
Paypal, Cash in Advance (CID), Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
10000 Pieces Per Month

Delivery Time
25 Days

Sample Available
Yes

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Vacuum-formed tray packaging Carton Wooden

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

Certifications
CE ROHS

About 5 inch capacitive touch screen, android touch panel with IIC interface, factory pricing touch panel

Parameters:

Size	5 inch Capacitive Touch Panel
Outline Dimension	119.8X74.5mm
View Area	110.88X62.83mm
Active Area	110.88X62.83mm
Customization	Dimension, thikness, printings, colors etc. optional
Structure	GG/OGS/GF/GFF optional
Cover glass thickness	0.55/0.7/1.0/1.1/1.8/2.0/3.0/4.0/5.0/6.0 mm optional
Glass sensor thickness	0.4/0.55/0.7/1.1/1.8mm optional
Response Speed	<5ms
Input Method	Finger/Conductive Pen
Touch Life	More than 50,000,000 times
Resolution	4096x4096 (Automatic match)
Touch Points	5 points
Supply Voltage	2.8-3.3V
Interface	I2C
Controller	Chip on FPC
Surface Hardness	>6H
Light Transmission	>85%
Operating Temperature	-20C ~ 70C
Storage Temperature	-30C ~ 80C
Operation Humidity	45-85%RH
Operation System	Android, Linux, Mac, QNX etc
IC solution	FocalTech,Ilitek,Goodix,Sitronix,SiS,EETI,Atmel,Cypress,HiSilicon,Handsray,Chipone etc. optional
Surface treatment	AG/AR/AF etc optional
Special requirements	Gloved hand/ Touch pen/mirror/Water-proof /Oil-proof/dust-proof/Woodgrain and metallic silk screen printing etc

Remarks:

1.GG/GF/GFF/OGS

2.Finger touch: support multiple touch and multiple gesture recognition.

3.AG: anti-glare,surface treatment

4.AR:anti-reflective,surface treatment

5.AF:anti-finger,surface treatment

6.Glove hand:mostly in Industrial or mecical application

7.Touch pen:more easy to write and draw

8.Mirror:FULL black

How to customize ? Please follow below steps:

Step 1:Tell us

a.Touch mechanical info. (touch structure,cover lens outline dimension,material,radius,printings,thickness,view area/active area,FPC position and dimension,required total touch thickness etc.)

b.Operation system,application

c.Interface,prefer IC solution

d.No.of touch points,position of origin

e.other special requirements

Step 2: According to customer's requirements or draft drawing,our RD will issue the official drawing for final checking.To do prototype production after drawing have been confirmed.Delivery date is round 2 weeks.

Step 3:Customer test the sample and feedback. Our RD department will fully support during the whole process (including remote debug and others).

Step 4:Once sample confirmed,then to start trial production.Our company will strictly do the same as samples.Not even a little change will be done before agreed by customer.Delivery date is round 3 weeks.
