5 wire 4 wire resistive touch screen USB controller board

Name: 5 wire 4 wire resistive touch screen USB controller board
Brand: CiChin Optical(Shenzhen) Co., Ltd.
Price: 1.0 USD
Availability: InStock

Price 1.0 USD ($)/ Piece

Get a Price/Quote

MOQ : 10 Pieces

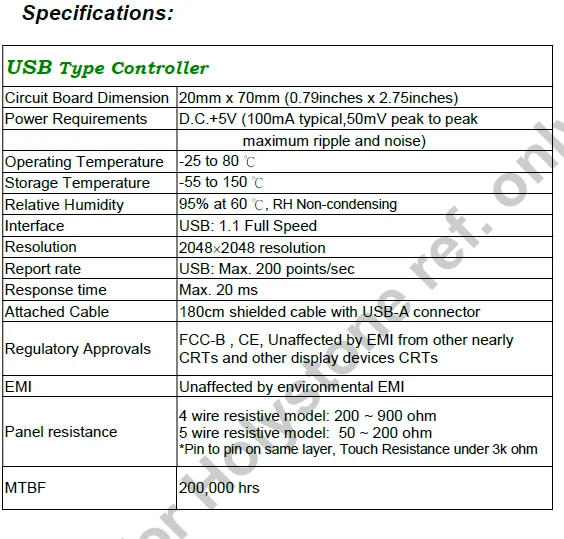

5 wire 4 wire resistive touch screen USB controller board Specification

Temperature
Operating: -20C to +70C

Material
FR-4 PCB, Electronic Components

Surface Treatment
HASL (Hot Air Solder Leveling)

Design
For 4-wire and 5-wire resistive touch screens

Usage
Allows connection between resistive touch panels and computer via USB

Mounting Type
Screw hole and adhesive supported

Dimension (L*W*H)
Approx. 80mm x 50mm x 10mm

Installation Guideline
Mount on flat surface, connect USB and touch panel cables as labeled

Equipment Type
Touch Panel USB Controller

Size
Standard Compact Board

Input Voltage
5V DC (USB powered)

Output Voltage
Signal output as per USB specification

Process
Microcontroller-based Signal Processing

Color
Green (PCB), Black/White connectors

Tolerance
High precision +/- 2%

Thickness
1.6mm PCB Standard

IP Rating
None (PCB board, not sealed)

Finish
Soldermask Coated, Silk Screened

Application
Industrial Control, POS Terminals, Interactive Kiosks, Embedded Devices

Supply Voltage
5V DC via USB

Service Period
Designed for continuous operation, 24/7

Frequency
16 MHz (MCU Clock)

Processing
SMT Soldering, High-precision Circuit Design

Technique
Automated Surface Mount Technology

Humidity
Operating: 10% to 85% RH, non-condensing

Product Type
Touch Screen USB Controller Board

Weight
Approx. 35g

Standard
USB HID compliant, RoHS

Power Consumption
<0.5W

Firmware Upgrade
Supported via USB

ESD Protection
Integrated ESD circuit on USB and touch interface

Indicator
On-board operation status LED

Compatibility
Windows, Linux, Android OS

Response Time
<20 ms typical

Drivers
Plug-and-play for most OS, additional drivers available for older systems

RoHS Compliance
Yes

Touch Screen Support
Compatible with 4-wire and 5-wire analog resistive touch panels

Chipset
Dedicated touch controller IC (e.g., UController, UPD, etc.)

Interface
USB 2.0 Full Speed

Connector Type
Pin headers and USB-B or USB mini socket

5 wire 4 wire resistive touch screen USB controller board Trade Information

Minimum Order Quantity
10 Pieces

FOB Port
SHENZHEN

Payment Terms
Paypal, Letter of Credit at Sight (Sight L/C), Telegraphic Transfer (T/T)

Supply Ability
10000 Pieces Per Month

Delivery Time
15 Days

Sample Available
No

Sample Policy
Contact us for information regarding our sample policy

Packaging Details
Plastic tray packaging Carton Wooden

Main Export Market(s)
Asia, Australia, Central America, North America, South America, Eastern Europe, Western Europe, Middle East

Main Domestic Market
All India

Certifications
CE ROHS

About 5 wire 4 wire resistive touch screen USB controller board

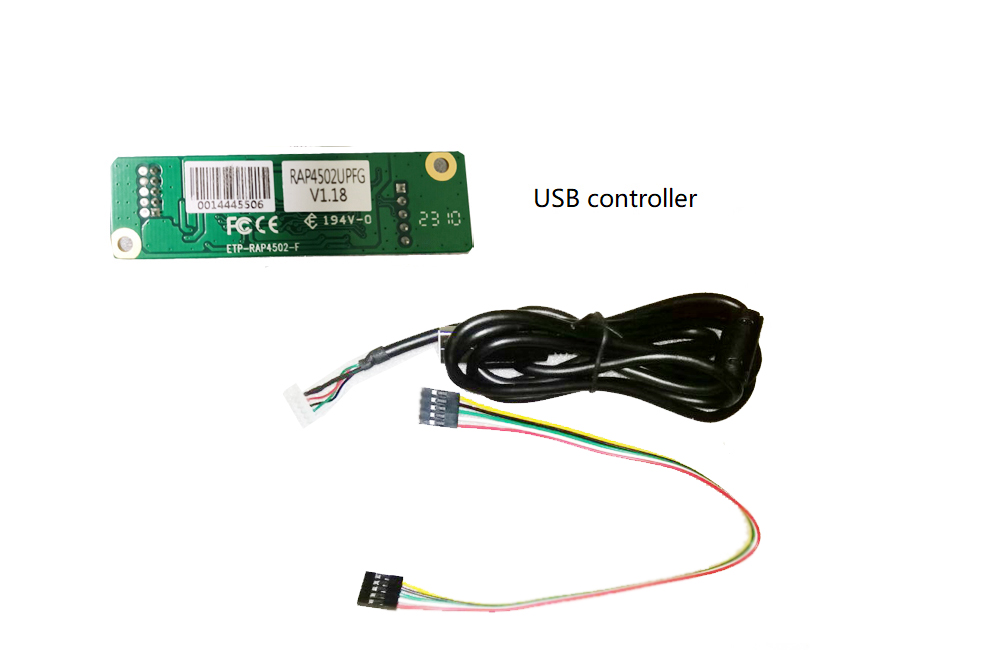

4 / 5-Wire USB, ETP-MB-RAP4502UPFG

Touch Panel Controller

eGalax_eMPIA launched touch control board to meet latest

Restriction of Hazardous Substances (RoHS) Directive. This

touch panel controller provides the optimistic performance of

your analog resistive touch panels for 4 or 5 wire models. It

communicates with PC system directly through USB connector.

You can see how superior the design is in sensitivity accuracy

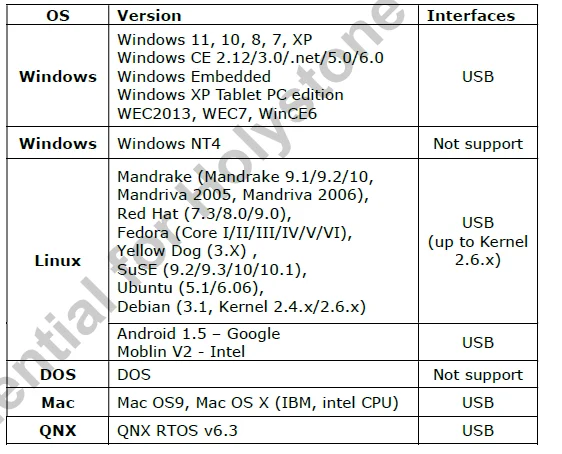

and friendly operation. The touch panel driver emulates mouse

left and right button function and supports operation systems as

following.

Controller Panel Pin Assignment:

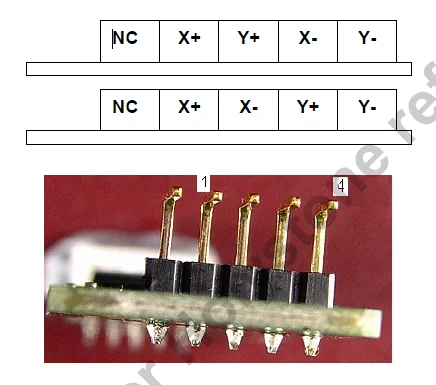

For 4-Wire Resistive Touch Panel

Pin-Out as below figure is automatically detected

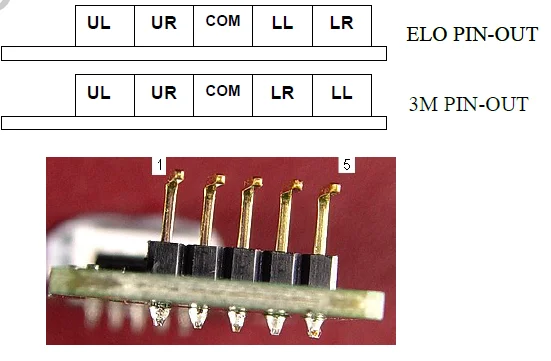

For 5-Wire Resistive Touch Panel

ELO or 3M type Pin-Out is automatically detected

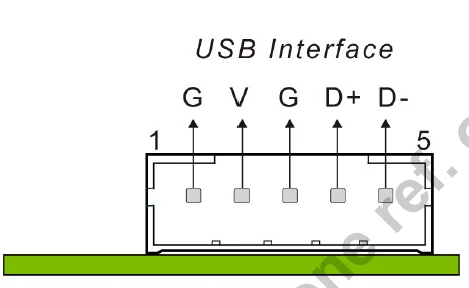

Controller Wafer Pin Assignment:

Versatile Compatibility for Your Touch Panel Needs

Supporting both 4-wire and 5-wire resistive analog touch screens, this USB controller board offers outstanding flexibility and is ideal for a wide range of applications, including industrial automation, POS terminals, and embedded systems. Its versatile design ensures smooth connectivity to computers via USB, regardless of application or environment.

Reliable Performance and Fast Response

Designed with a dedicated controller IC, the board ensures quick touch responses, typically less than 20 milliseconds. The robust ESD protection and high-precision circuitry maintain stable operation in critical environments, providing accurate performance around the clock for continuous, 24/7 usage demands.

Effortless Installation and Maintenance

Mount this compact board on any flat surface using screws or adhesive, then simply connect the USB and labeled touch panel cables. With plug-and-play drivers for modern operating systems and easy USB firmware upgrades, installation and maintenance are straightforward, minimizing downtime and technical complexity.

FAQ's of 5 wire 4 wire resistive touch screen USB controller board:

Q: How do I install the 5-wire/4-wire resistive touch screen USB controller board?

A: Install the controller board on a flat surface using the mounting holes or adhesive backing. Connect the touch panel cable and USB cable as labeled. The board draws power from the USB port and is immediately recognized by most operating systems without needing extra drivers.

Q: What operating systems does this controller board support?

A: The controller board is compatible with Windows, Linux, and Android OS through plug-and-play USB HID drivers. Additional driver packages for older systems are available from the manufacturer.

Q: When is it appropriate to use this controller board with my touch panels?

A: Use this controller board whenever you need a reliable USB interface between a 4-wire or 5-wire analog resistive touch panel and a host computer, especially in industrial control, POS terminals, embedded systems, or interactive kiosk applications.

Q: Where is the best placement for the USB controller board?

A: For optimal performance, mount the board inside an enclosure or panel on a flat surface near the touch panel, keeping it protected from excessive moisture or dust, as the board is not IP-rated or fully sealed.

Q: What is the process for upgrading the firmware?

A: Firmware upgrades are conveniently handled via USB. Connect the board to your computer, and follow the manufacturer's firmware tool instructions to update without removing the board from your setup.

Q: How does ESD protection benefit my touch interface applications?

A: The integrated ESD protection circuit provides robust safeguarding against electrostatic discharges on both USB and touch input lines, increasing the longevity and stability of your equipment, even in static-prone environments.

Q: What are the main benefits of using this controller board?

A: This controller board simplifies the integration of resistive touch panels with various host systems, delivers fast and accurate touch responses, ensures durable performance, and supports easy installation and upgrades, making it especially valuable for demanding commercial and industrial uses.
