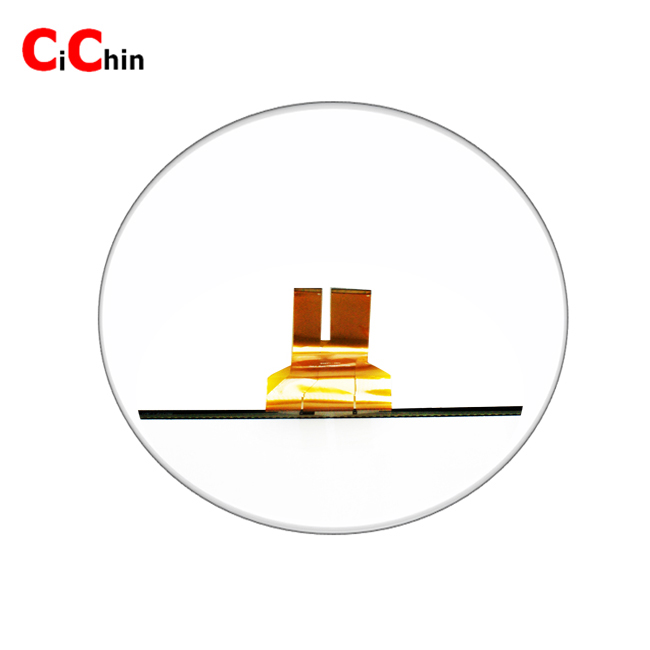

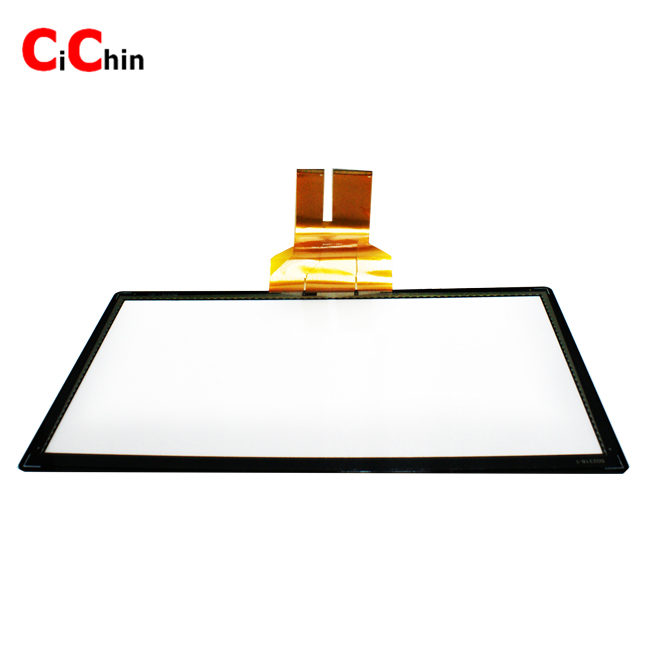

18.5 inch capacitive touch screen, advertising machine touch screen

About 18.5 inch capacitive touch screen, advertising machine touch screen

Products Description

18.5 inch capacitive touch panel, accept customization

Parameters:

Size	18.5 inch Capacitive Touch Panel

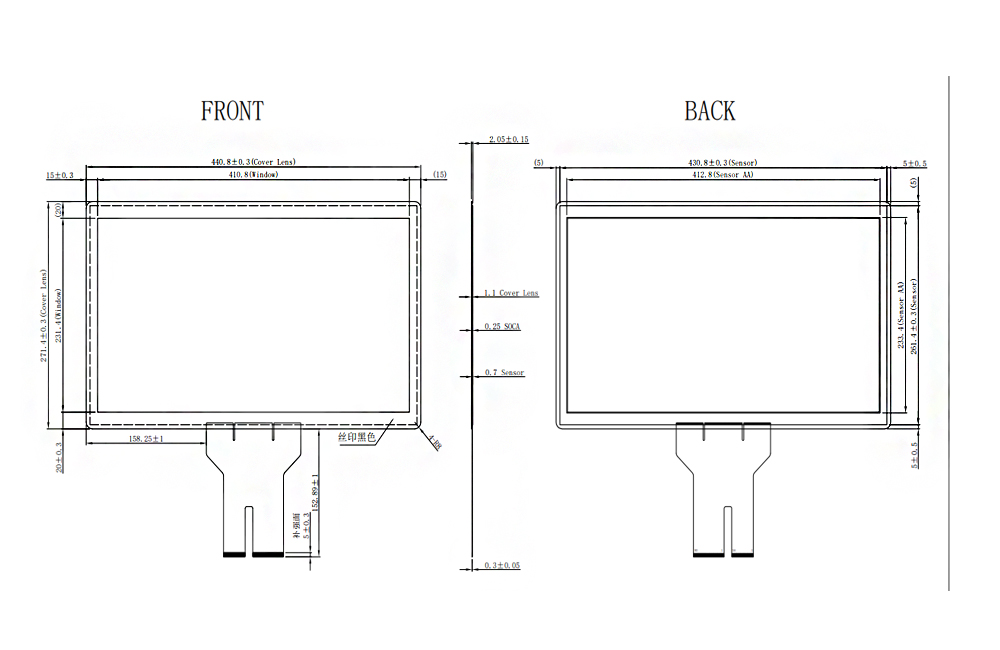

Outline Dimension	440.80x271.40mm
View Area	430.80x261.40mm
Active Area	410.80x231.40mm
Customization	Dimension, thikness, printings, colors etc. optional
Structure	GG/OGS/GF/GFF optional
Cover glass thickness	0.55/0.7/1.0/1.1/1.8/2.0/3.0/4.0/5.0/6.0 mm optional
Glass sensor thickness	0.4/0.55/0.7/1.1/1.8mm optional
Response Speed	<5ms
Input Method	Finger/Conductive Pen
Touch Life	More than 50,000,000 times
Resolution	4096x4096 (Automatic match)
Touch Points	5 points
Supply Voltage	2.8-3.3V
Interface	I2C
Controller	Chip on FPC
Surface Hardness	>6H
Light Transmission	>85%
Operating Temperature	-20C 70C
Storage Temperature	-30C 80C
Operation Humidity	45-85%RH
Operation System	Android, Linux, Mac, QNX etc
IC solution	FocalTech,Ilitek,Goodix,Sitronix,SiS,EETI,Atmel,Cypress,HiSilicon,Handsray,Chipone etc. optional
Surface treatment	AG/AR/AF etc optional
Special requirements	Gloved hand/ Touch pen/mirror/Water-proof /Oil-proof/dust-proof/Woodgrain and metallic silk screen printing etc

Remarks:

1.GG/GF/GFF/OGS

2.Finger touch: support multiple touch and multiple gesture recognition.

3.AG: anti-glare,surface treatment

4.AR:anti-reflective,surface treatment

5.AF:anti-finger,surface treatment

6.Glove hand:mostly in Industrial or mecical application

7.Touch pen:more easy to write and draw

8.Mirror:FULL black

Cover lens

Materials:

Soda-lime glass or High-alumina glass

Thickness:

0.55mm(suggest size < 6 inch)

0.7mm(suggest size <10.1 inch)

1.0mm(custom thickness)

1.1/1.8mm( standard thickness)

2.0mm(custom thickness)

3.0mm (Standard thickness)

4.0/5.0mm(custom thickness)

Surface Treatment:

a. AF: Anti-fingerprint

Commonly used processes include spraying and electroplating. Electroplating offers better friction resistance but is more expensive.

b. AR: Anti-reflection

Using an electroplating process, it appears purple, red, or blue, giving an overall high-end visual effect.

c. AG: Anti-glare

Commonly used processes include etching and spraying. The etching process provides better friction resistance.

Glass sensor

Thickness

0.4/0.55/0.7/1.1/1.8mm

Sheet Resistance

4060 / 6090 / 80120 / 200300 : Anti-Ghosting Treatment required.

300500 / 400600 :Anti-Ghosting Treatment optional (suitable for small to medium-sized displays only).

Strengthening Treatment

Standard: No additional treatment.

Chemical Strengthening:

Recommended for: Sensors with a thickness of 0.4 mm or Structures where the sensor directly contacts the housing.

Film Sensor

Thickness

0.05mm Easily prone to pressure damage and bending damage, only suitable for small sizes)

0.075mm

0.1mm

0.125mm

Sheet Resistance

10050 : Poor etching marks, suitable for medium to large screens.

15050 : Industrially mature material, currently widely used.

OCA

Liquid OCA

Lower cost, but edge wet glue cannot be completely removed, and adhesive thickness uniformity is poor. It has been largely phased out.

Solid OCA

Higher cost, with uniform adhesive thickness, but not easy to rework during the manufacturing process. Used in some customized products long before for the unity.

UV-curable Solid OCA (SCA)

Higher cost, with uniform adhesive thickness and easy rework during the manufacturing process. Currently the mainstream material.

How to customize ? Please follow below steps:

Step 1:Tell us

a.Touch mechanical info. (touch structure,cover lens outline dimension,material,radius,printings,thickness,view area/active area,FPC position and dimension,required total touch thickness etc.)

b.Operation system,application

c.Interface,prefer IC solution

d.No.of touch points,position of origin

e.other special requirements

Step 2: According to customer's requirements or draft drawing,our RD will issue the official drawing for final checking.To do prototype production after drawing have been confirmed.Delivery date is round 2 weeks.

Step 3:Customer test the sample and feedback. Our RD department will fully support during the whole process (including remote debug and others).

Step 4:Once sample confirmed,then to starttrial production.Our company will strictly do the same as samples.Not even a little change will be done before agreed by customer.Delivery date is round 3 weeks.

Suppliers:

Office:

Applications:

A. Consumer Electronics(Smartphones & Tablets,Smartwatches & Wearables)

B.Retail & Hospitality(POS Systems,Self-Service Kiosks)

C.Automotive(Car Infotainment Systems,Dashboard Navigation)

D.Industrial & Manufacturing(Factory Automation,Medical Devices

E.Education & Public Sector(Study tablets, E-readers,Iteractive kiosks, Advertising machine)

F.Gaming & Entertainment(Arcade Machines,Casino & Lottery Terminals, Toys)

G.Home Automation & Smart Devices(Smart Home Control Panels,Voice-Activated Touch Devices)

Packing:

Vivid Display with Advanced Touch Technology

Experience crystal-clear images and precise interactivity with a 1920 x 1080 Full HD resolution, 10-point multi-touch PCAP technology, and anti-glare finish. The ultra-responsive touch interface and wide 178 viewing angles make it ideal for various public spaces, ensuring an engaging user experience.


Built for Durability and Versatile Installation

Engineered for demanding commercial use, this touch screen features IP54-rated protection, tempered glass with 7H hardness, and a robust aluminum alloy frame. The device supports surface, wall, or embedded installation, making it ideal for digital signage, kiosks, and retail environments.


Seamless Integration and Compatibility

Easily connect via USB (touch), HDMI, or VGA. Works smoothly with Windows (7/8/10), Android, and Linux thanks to broad driver support. OEM/ODM customization is available to fit your unique branding or installation requirements, supported by CE, FCC, and RoHS certifications.
