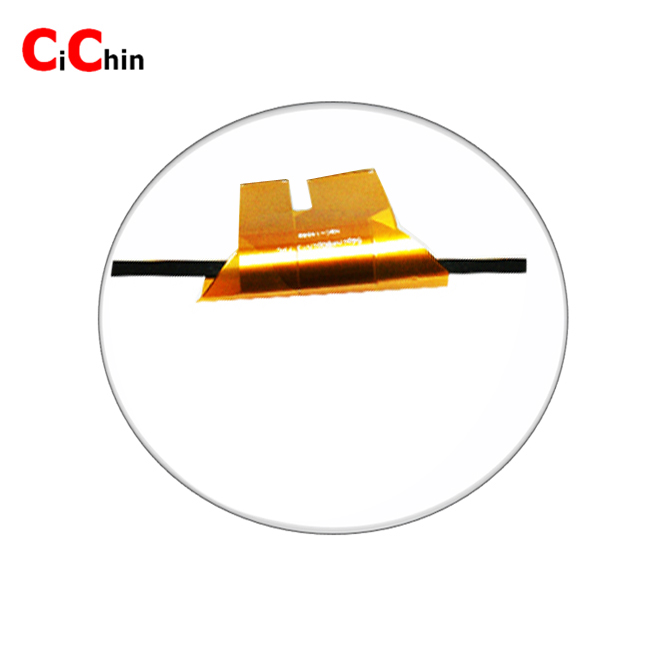

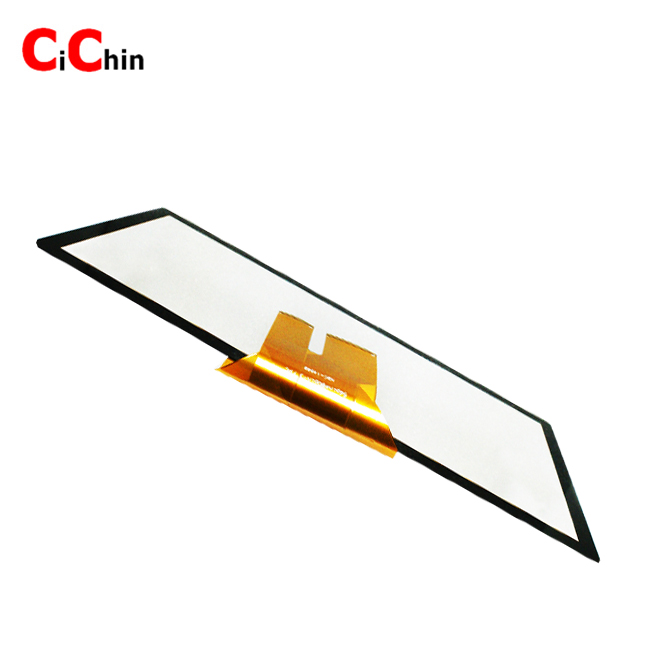

19.5 inch capacitive touch screen,embeded capacitive touch screen

About 19.5 inch capacitive touch screen,embeded capacitive touch screen

Products Description

19.5 inch capacitive touch panel, accept customization

Parameters:

Size	19.5 inch Capacitive Touch Panel

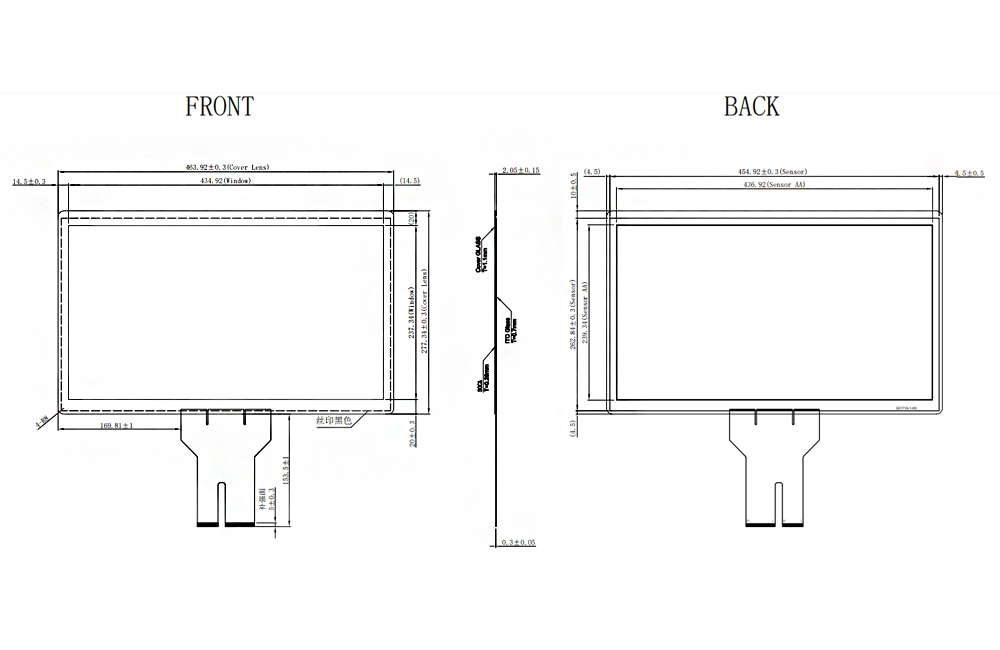

Outline Dimension	463.92 X277.34mm
View Area	454.92 X262.84mm
Active Area	434.92X237.34mm
Customization	Dimension, thikness, printings, colors etc. optional
Structure	GG/OGS/GF/GFF optional
Cover glass thickness	0.55/0.7/1.0/1.1/1.8/2.0/3.0/4.0/5.0/6.0 mm optional
Glass sensor thickness	0.4/0.55/0.7/1.1/1.8mm optional
Response Speed	<5ms
Input Method	Finger/Conductive Pen
Touch Life	More than 50,000,000 times
Resolution	4096x4096 (Automatic match)
Touch Points	5 points
Supply Voltage	2.8-3.3V
Interface	I2C
Controller	Chip on FPC
Surface Hardness	>6H
Light Transmission	>85%
Operating Temperature	-20C 70C
Storage Temperature	-30C 80C
Operation Humidity	45-85%RH
Operation System	Android, Linux, Mac, QNX etc
IC solution	FocalTech,Ilitek,Goodix,Sitronix,SiS,EETI,Atmel,Cypress,HiSilicon,Handsray,Chipone etc. optional
Surface treatment	AG/AR/AF etc optional
Special requirements	Gloved hand/ Touch pen/mirror/Water-proof /Oil-proof/dust-proof/Woodgrain and metallic silk screen printing etc

Remarks:

1.GG/GF/GFF/OGS

2.Finger touch: support multiple touch and multiple gesture recognition.

3.AG: anti-glare,surface treatment

4.AR:anti-reflective,surface treatment

5.AF:anti-finger,surface treatment

6.Glove hand:mostly in Industrial or mecical application

7.Touch pen:more easy to write and draw

8.Mirror:FULL black

Cover lens

Materials:

Soda-lime glass or High-alumina glass

Thickness:

0.55mm(suggest size < 6 inch)

0.7mm(suggest size <10.1 inch)

1.0mm(custom thickness)

1.1/1.8mm( standard thickness)

2.0mm(custom thickness)

3.0mm (Standard thickness)

4.0/5.0mm(custom thickness)

Surface Treatment:

a. AF: Anti-fingerprint

Commonly used processes include spraying and electroplating. Electroplating offers better friction resistance but is more expensive.

b. AR: Anti-reflection

Using an electroplating process, it appears purple, red, or blue, giving an overall high-end visual effect.

c. AG: Anti-glare

Commonly used processes include etching and spraying. The etching process provides better friction resistance.

Glass sensor

Thickness

0.4/0.55/0.7/1.1/1.8mm

Sheet Resistance

4060 / 6090 / 80120 / 200300 : Anti-Ghosting Treatment required.

300500 / 400600 :Anti-Ghosting Treatment optional (suitable for small to medium-sized displays only).

Strengthening Treatment

Standard: No additional treatment.

Chemical Strengthening:

Recommended for: Sensors with a thickness of 0.4 mm or Structures where the sensor directly contacts the housing.

Film Sensor

Thickness

0.05mm Easily prone to pressure damage and bending damage, only suitable for small sizes)

0.075mm

0.1mm

0.125mm

Sheet Resistance

10050 : Poor etching marks, suitable for medium to large screens.

15050 : Industrially mature material, currently widely used.

OCA

Liquid OCA

Lower cost, but edge wet glue cannot be completely removed, and adhesive thickness uniformity is poor. It has been largely phased out.

Solid OCA

Higher cost, with uniform adhesive thickness, but not easy to rework during the manufacturing process. Used in some customized products long before for the unity.

UV-curable Solid OCA (SCA)

Higher cost, with uniform adhesive thickness and easy rework during the manufacturing process. Currently the mainstream material.

How to customize ? Please follow below steps:

Step 1:Tell us

a.Touch mechanical info. (touch structure,cover lens outline dimension,material,radius,printings,thickness,view area/active area,FPC position and dimension,required total touch thickness etc.)

b.Operation system,application

c.Interface,prefer IC solution

d.No.of touch points,position of origin

e.other special requirements

Step 2: According to customer's requirements or draft drawing,our RD will issue the official drawing for final checking.To do prototype production after drawing have been confirmed.Delivery date is round 2 weeks.

Step 3:Customer test the sample and feedback. Our RD department will fully support during the whole process (including remote debug and others).

Step 4:Once sample confirmed,then to starttrial production.Our company will strictly do the same as samples.Not even a little change will be done before agreed by customer.Delivery date is round 3 weeks.

Suppliers:

Office:

Applications:

A. Consumer Electronics(Smartphones & Tablets,Smartwatches & Wearables)

B.Retail & Hospitality(POS Systems,Self-Service Kiosks)

C.Automotive(Car Infotainment Systems,Dashboard Navigation)

D.Industrial & Manufacturing(Factory Automation,Medical Devices

E.Education & Public Sector(Study tablets, E-readers,Iteractive kiosks, Advertising machine)

F.Gaming & Entertainment(Arcade Machines,Casino & Lottery Terminals, Toys)

G.Home Automation & Smart Devices(Smart Home Control Panels,Voice-Activated Touch Devices)

Packing:

Advanced Touch Experience

Experience seamless interaction with 10-point multi-touch support and ultra-fast response times. The integrated capacitance sensing controller and zero required touch pressure provide a natural, true-touch experience for users across various applications.


Rugged & Reliable Design

Built for demanding environments, this panel features a 6H hardness rating, anti-scratch, and anti-fingerprint coating, while its IP65-rated front panel resists dust and water. With a service life of at least 50,000 hours and operational temperatures from -20C to +70C, it delivers long-lasting, stable performance.


Flexible Mounting & Wide Compatibility

Engineered for easy embedded integration, this 19.5-inch panel includes multiple interface and connector options. Its broad OS compatibility ensures it works seamlessly in diverse systems, including Windows, MacOS, Linux, and Android platforms.
